1280 x 1024
7.5 µm pixel pitch
MWIR
Features
- High Image Quality
- High Resolution
- Compactness
- Easy Mechanical Integration
Frame Rate
Up to 60Hz
Spectral Band
3.6 to 4.2 μm
FPA Operating Temperature
Up to 150 K
Sensor Performance: NETD
40mK (300K, 50%WF, f/3)
Description
The new PlugUp platform developed by LYNRED enables integrators to develop a single design which can host different products for multi-use applications.

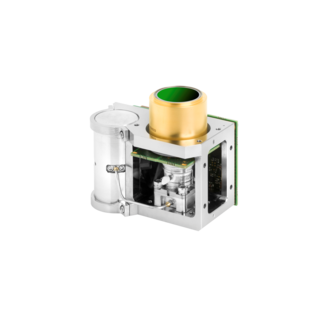

The NEW SEEGNUS MW product is particularly suitable for integration into high performance systems requiring compactness & high MTTF.
